DIY: Toy Design ( Harvard Gsd_JTerm 2014)

Instructor : Dimitris Papanikolaou

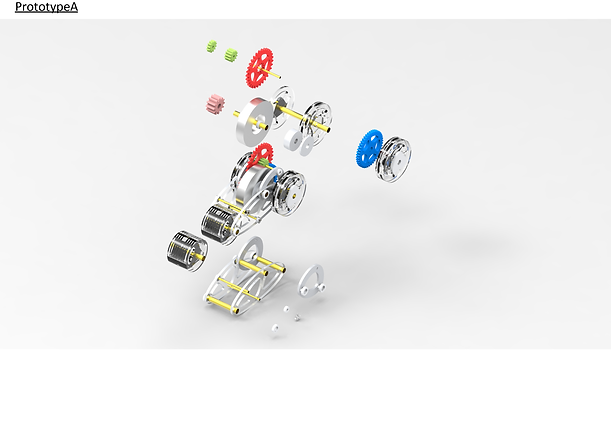

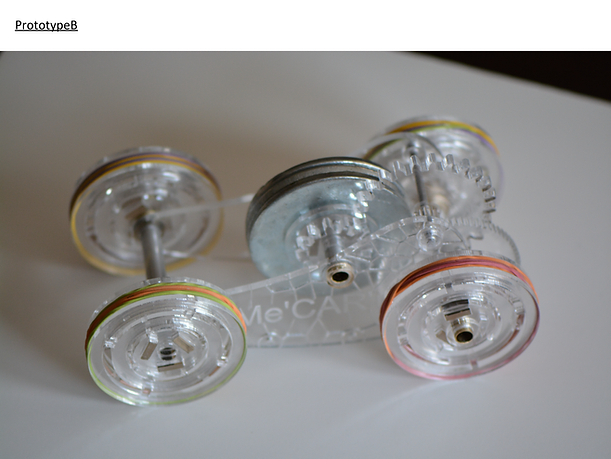

This is a mini 4 day  project which deals with designing a Flywheel Car and focussing on Lasercutting as the Fabrication method.

Equal imporance was given to gearing, material tolarances, compliant joinery and DFA (Design for Assembly).

Screen Shot 2014-09-11 at 11.05.23 AM.png

Team : Saurabh Mhatre | Saurav Biswas

MeCARnic
